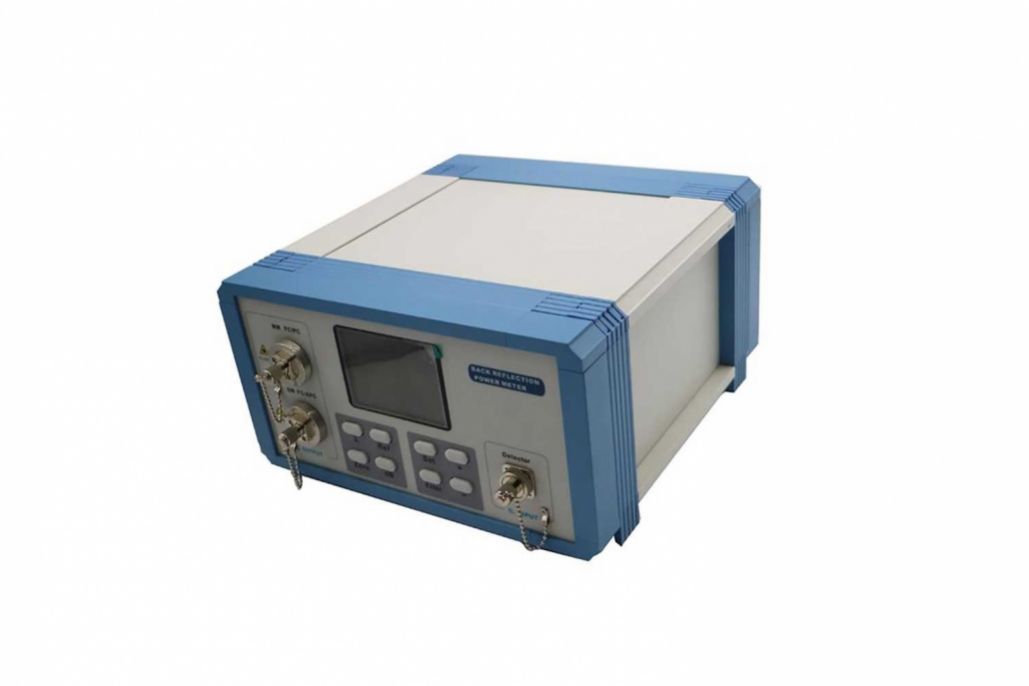

Fiber Optic Desktop Insertion & Return Loss Test Machine

Product Model

 Outlines Desktop Insertion Return Loss Tester

Product Description

Desktop Insertion Return Loss Tester with color screen has stable and reliable performance, which integrates stable light source, high-precision power meter, insertion loss meter and return loss meter into one multifunction instrument. Based on domestic customers’ requirements, R&D team combined advantages of same type instrument within China/overseas and then developed the high-precision tester by several years’s unremitting effort. With high cost effective and state of art characteristics, it can be widely used for OEM device verification, research institutions R&D and construction maintenance in optical fiber/passive devices/optical communication system industries where demand plug loss, return loss and stability measurements



  1. Multiple display, easy handling, fast response and stability
  2. Stable output power/high detection speed/wide measurement range
  3. Wavelength synchronous switching
  4. Light source and power meter achieve wavelength synchronous switching under insertion/return loss mode
  5. Multiple working mode
  6. Return loss mode/insertion loss mode/power meter/dual-wavelength testing
  7. Color recognition for test result
  8. Different colors correspond different test results. Pass/Fail is available by just a glance. P
  9. Return loss/insertion loss are synchronously measured. No buttons switching
  10. High definition LCD plus multi-level test interfaces bring rich visual experience and easing visual fatigue
  11. Electro-magnetic proofing by metal covering. Durable buttons bring comfortable finger handling experience
  12. Smart removable interfaces of light source and power meter
  13. Easy to be disassembled to clean optical detector or replace with others adapters(FC/SC/ST/2.5mm general/1.25mm general/MT-RJ) or clean inside APC adapter. Note only need to rotate light source/power meter interface to disassemble it
  14. Time is available to reasonably organize work
  15. The tester can connect to computer and transmit test data to it. Specialized program give Pass/Fail result of jumper. Test data is available for analysis, readout and record.

Technical parameters

Model Insertion and return loss tester
Light source wavelength MM:850nm SM:1310/1550nm
Optical return loss test
Wavelength 1310/1550nm
Measurement range 0~75dB
Calibration wavelength 1310/1550nm
Measurement tolerance ±0.4dB
Output stability 0.02dB /hour(@250C)
Interface types MM:850nm FC/UPC ;SM: 1310/1550nm FC/APC
Optical insertion loss test
Calibration wavelength 850/980/1300/1310/1490/1550/1625nm
Measurement range +3~-80dBm
Measurement tolerance ±0.03dB
Display resolution Logarithmic: 0.01dB; linear: 0.001nW/μW/mW
Test mode Linear and non-linear
Interface types Removable: FC/SC/ST/generalΦ2.5mm/ generalΦ1.25mm adapters
Screen Color LCD
Resolution 320*240

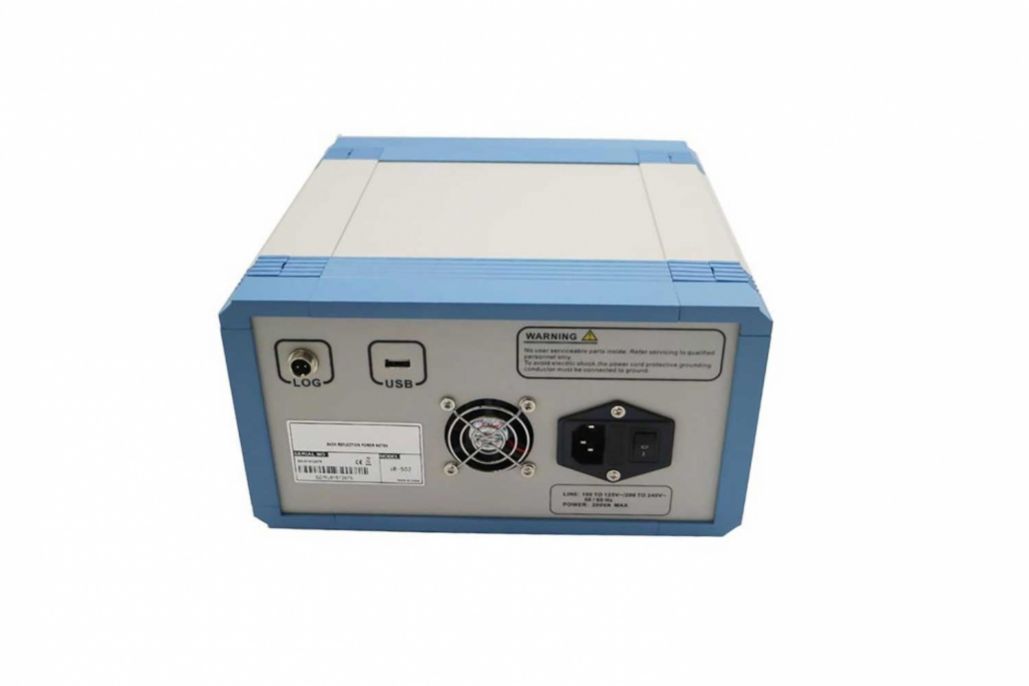

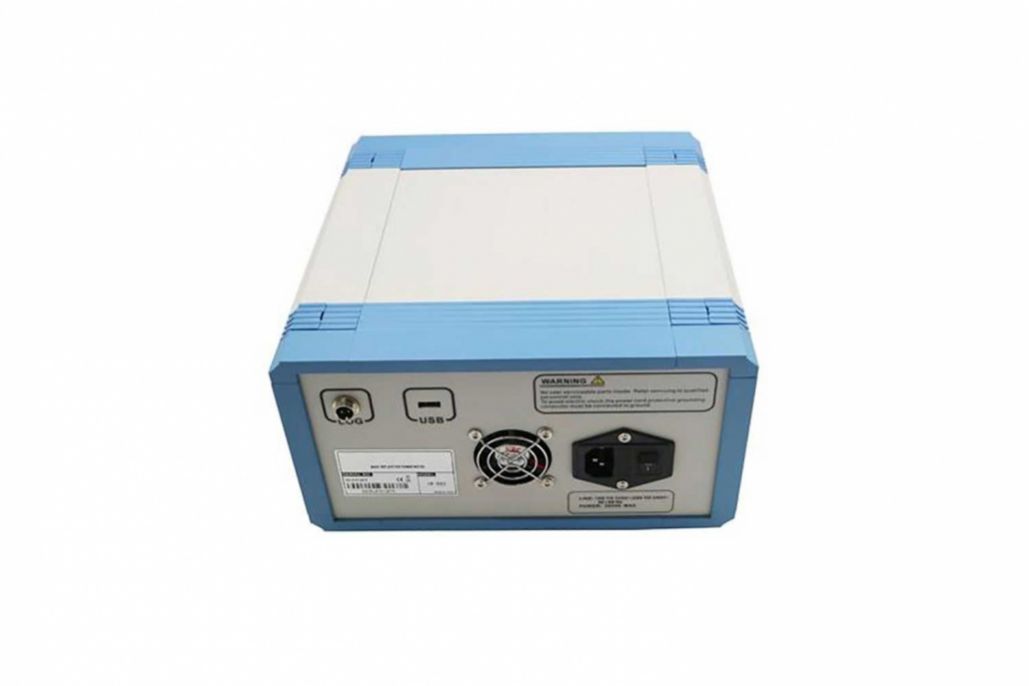

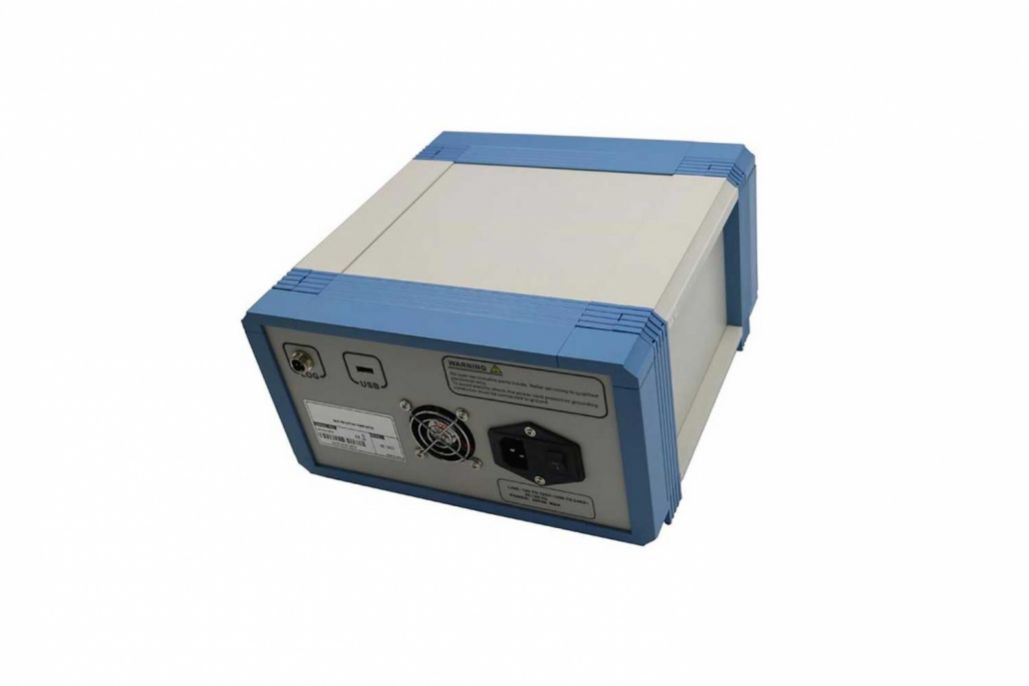

Communication interface USB
Power supply AC 90-260V
Work environment temperature:-50C~+550C  ;humidity<95%RH No condensation
Storage environment temperature:-200C~+700C  ;humidity<85%RH No condensation
Dimensions 265X265X140mm
Weight 3.5kg

Instruction of buttons on the panel

  1. switch of light source wavelength
  2. Ref: calibrate return loss reference value—–long time press
  3. BL:clear button for return loss
  4. dBm/dB: clear button for insertion loss
  5. Set: Set up or conversion
  6. +: increase
  7. –: decrease
  8. Enter : confirm
  9. 850nm:850nm multimode light source output(FC/UPC)
  10. 1310/1550nm:1310/1550nm single mode light source output(FC/APC)
  11. Power meter interface
