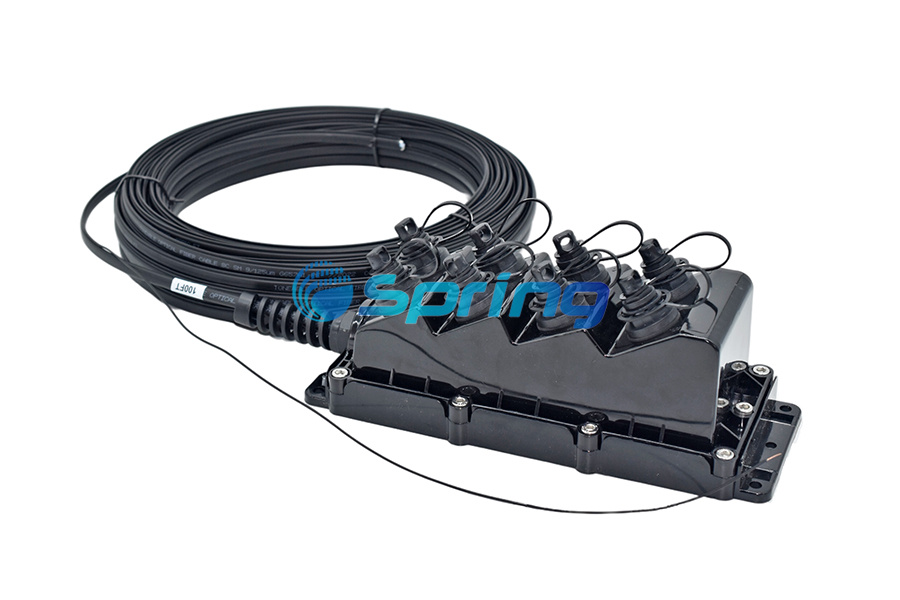

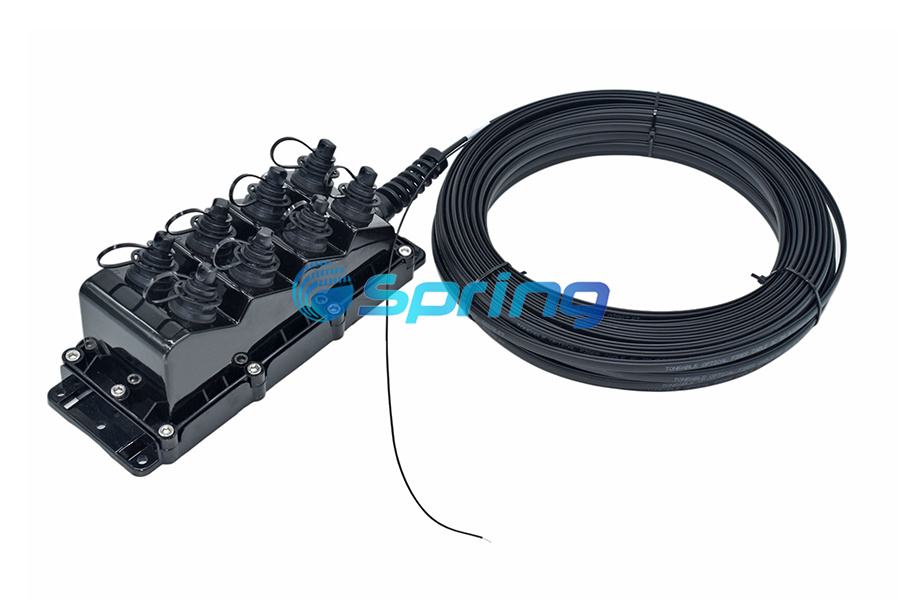

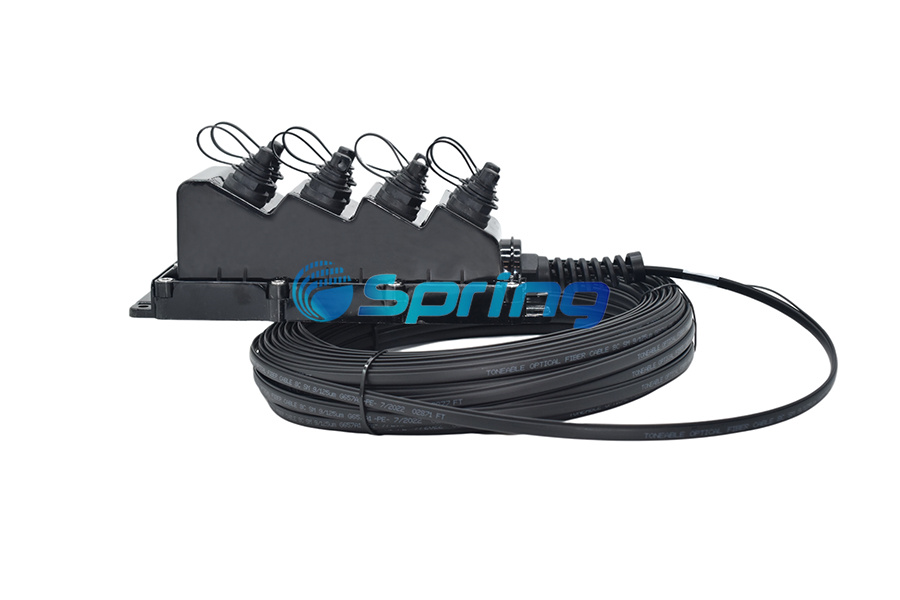

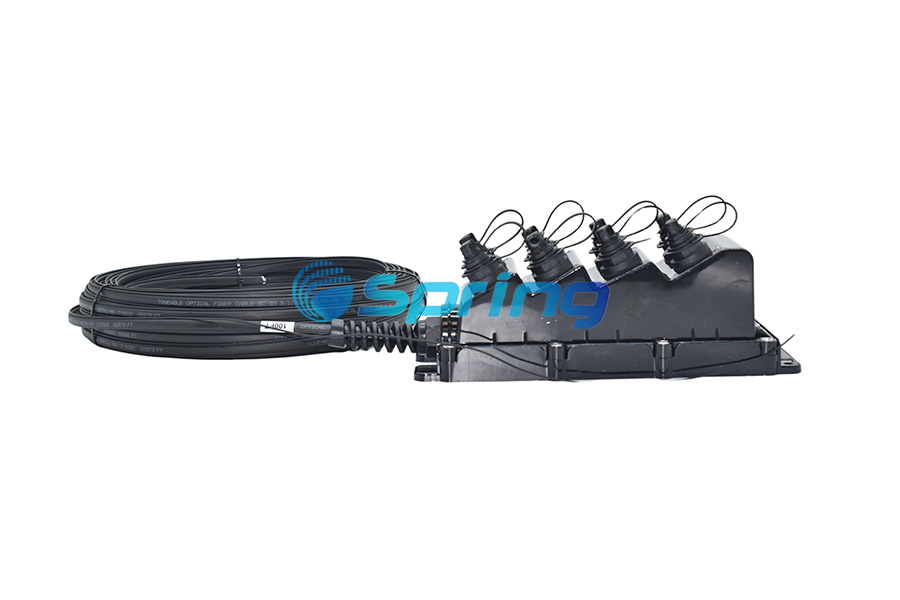

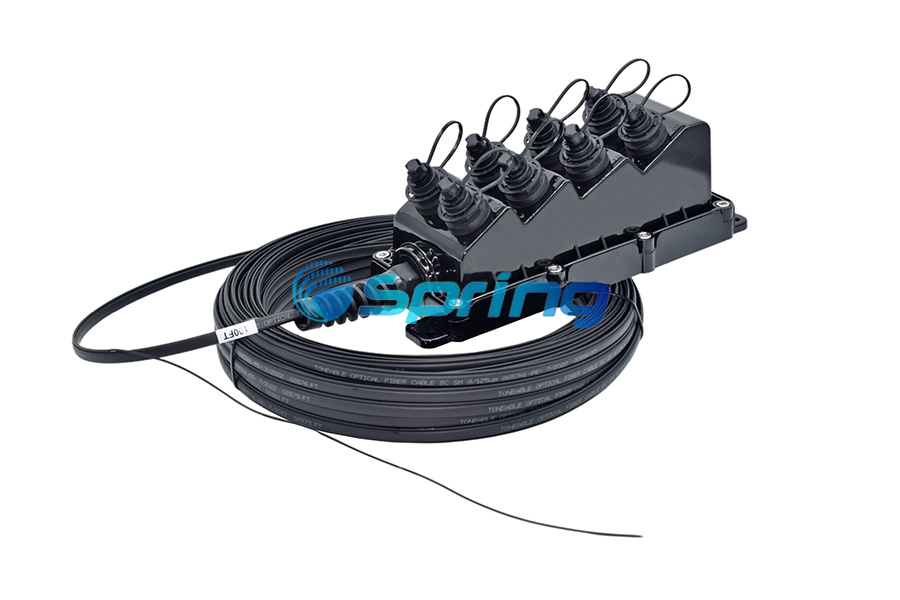

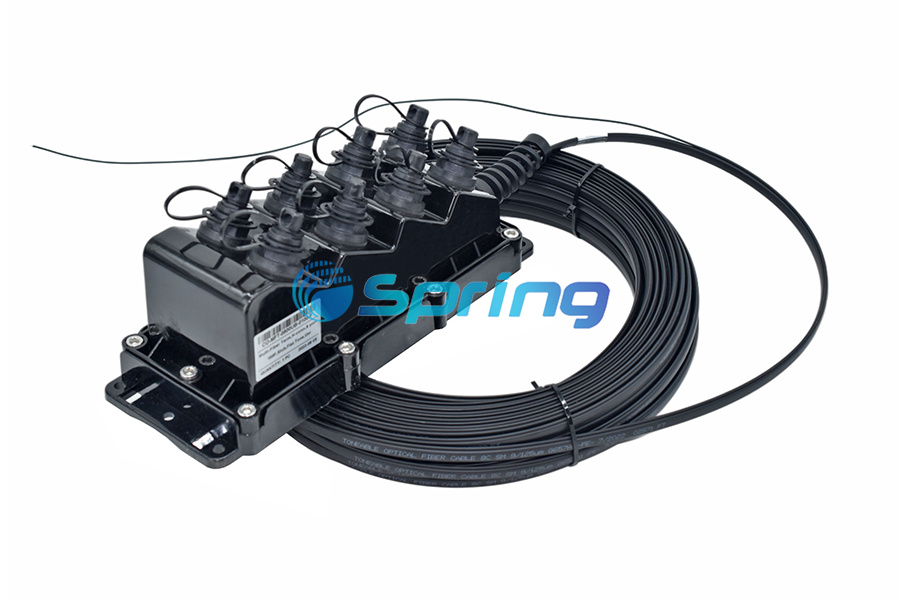

Multiport Enclosure SuperTap Equivalent With SST Cable Tonable Drop Jumpers

Product Description

FiberHub is a new economic fiber distributed solutions for outdoor use. Compare traditional products, FiberHub is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installationi, based on different situation. FiberHub not only used in FTTH field, but also used in FTTA or other harsh environment field. Spring Optic’s hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design. It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.8core FTTA Fiber Optic Hub Box with Hardened fastconnect adapters compatible with Corning Optitap products and solutions in FTTA.

Features

Features:

  • High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
  • Factory-sealed or field assembly.
  • IP68 water and dust protection
  • Strong enough: working under 1200N pulling force long term.
  • From 2 to 12 ports for single or multifiber harsh connectors.
  • IP68 waterproof rating.
  • Wall-mounting, aerial installation or holding pole installation.
  • Decreased angle surface and height make sure no connector interfering when operating.
  • Meet IEC 61753-1 standard.
  • Cost effective: save 40% operating time.
  • Available with PLC or splice sleeve for fiber divide.

8Port MST Box Drawing paper:

Specification

Specifications:

Dimensions(LxWxH) 210x105x93mm(4Core) 283x105x95mm(8Core)
Ingress Protection IP68
Working Temperature -40~85℃
Cable Strength Member Armoured or Non-armoured
Cable Type Hybrid or non-hybrid
Round Cable OD 5.0mm to 14.0mm
Flat Cable Dimension 4.0×7.0mm
Cable Jacket Material LSZH,PE or TPU
Bending Radius 20D
Cable Crush Resistance 200N/cm long term
Tensile Strength 1200N long term
UV Resistance ISO 4892-3
Fire Protection Rating UL94-V0
Number of PLC 1~2pcs
Number of Fusion Protection Sleeves 1~24pcs
Application

Application:

  • FTTH Projects
  • FTTA Projects
  • Truck cable connectings
  • Prospecting or military communication
